编号 :

UF-DT51

Ultra-small laser photoelectric sensor UF-DT51


Retail price

Market price


UF-DT51

Key words:

weight

Quantity
-
+

inventory

Hidden domain element occupying

Data download

  • Technical parameter

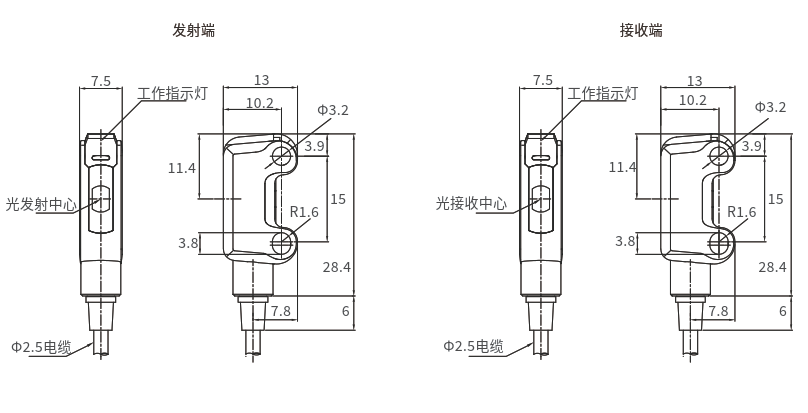

  • Dimensional structure
  • Circuit diagram
  • attachment
  • Apply
  • Model :NPN/PNPUF-GT51N/UF-GT51P
    typeRelative form
    Detection distance1500mm
    Current consumption30mAmax
    Spot sizeΦ3.5mm(when the distance is 500mm); Φ7mm(when the distance is 1000mm)
    ContrastLess than 20% of the detection distance
    Light source (wavelength)Laser (650nm)
    Supply voltageDC12~24V
    Response timeLess than 1ms
    Ambient temperature-10- +50℃
    Ambient humidity35-85%
    Store temperature/humidity20- 60℃/35%-95%
    Vibration (durability)10-55Hz,1.5mm double amplitude, up to 1h in X, Y and Z directions
    Class of protectionIP65
    Protection circuitPositive and negative electrode reverse connection protection, load short circuit protection
    Output lightRed LED
    Power indicator lightGreen LED
    Normally open/normally closed modeNormally open (light entry action)/ Normally closed (light blocking action) mode is optional
    Connection modeWire extraction type (standard wire length 2m)
    Shell materialSUS316L
