UF-UB30
Ultra-thin background suppression photoelectric sensor UF-UB30
Retail price
Market price
UF-UB30
Product series:
Photoelectric Sensors
Photoelectric sensor
Key words:
weight
Quantity
-
+
inventory
Hidden domain element occupying
Data download
- Technical parameter

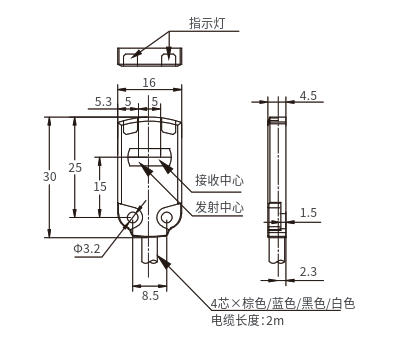

- Dimensional structure

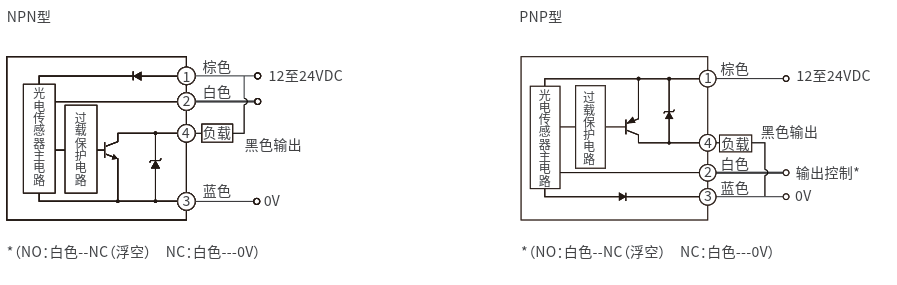

- Circuit diagram
- attachment
- Apply
-
Model :NPN/PNP UF-UB30N/UF-UB30P type Reflection type shape flat Detection distance The background suppression distance is 30±5mm Normally open normally closed mode ON when entering light or ON when blocking light optional Operation mode: Output LIGHT-ON/NC Response time Max. 1ms Spot diameter Less than Φ5mm(30mm) illuminant Red LED(650nm) Display lamp Output indicator (red), stable operation indicator (green) Supply voltage 12-30VDC Wave current (P-P)10% Current consumption 19mA IP level IP67 Control output NPN collector open, PNP collector open 30VDC below, 50mA below residual voltage: 30mA below 1.5V, 30 to 50mA below 2.0V leakage current: load resistance 3KΩ. Below 0.3mA, load resistance below 0.5mA at 1KΩ, load resistance below 0.2KΩ at 1.5mA /td> -
-
