Ultra-small laser photoelectric sensor UF-BD51
Retail price
Market price
UF-BD51
Product series:
Photoelectric Sensors
Photoelectric sensor
Key words:
weight
Quantity
-
+
inventory
Hidden domain element occupying
Data download
- Technical parameter
- Dimensional structure

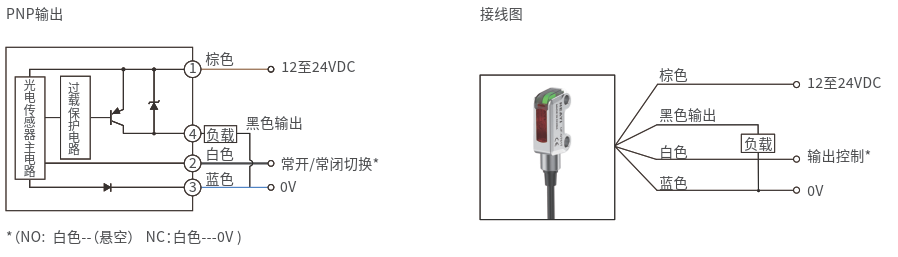

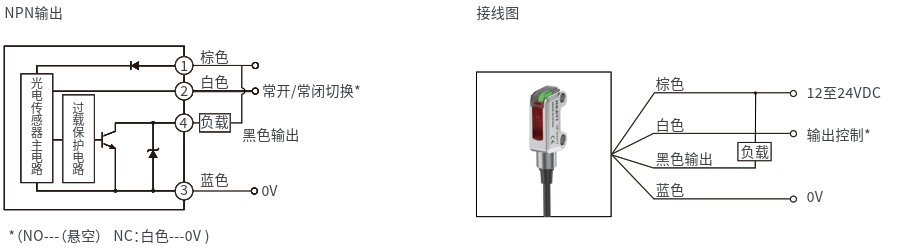

- Circuit diagram
- attachment
- Apply
-
Model :NPN/PNP UF-BD51N/UF-BD51P type Reflection type Detection distance White paper 100*100 detection distance :2-50mm matte black paper 2-35mm Current consumption ≤15mA Spot size Φ4mm Contrast Less than 20% of the detection distance Light source (wavelength) Red LED(650nm) Supply voltage DC12~24V Response time Less than 1ms Ambient temperature -10- +50℃ Ambient humidity 35-85% Store temperature/humidity 20- 60℃/35%-95% Vibration (durability) 10-55Hz,1.5mm double amplitude, up to 1h in X, Y and Z directions Class of protection IP65 Protection circuit Positive and negative electrode reverse connection protection, load short circuit protection Output light Red LED Power indicator light Green LED Normally open/normally closed mode Normally open (light entry action)/ Normally closed (light blocking action) mode is optional Connection mode Wire extraction type (standard wire length 2m) Shell material SUS316L -
-
