Square photoelectric sensor UL-T21

Retail price

Market price

UL-T21

Product series: Photoelectric Sensors Photoelectric sensor

Key words:

Mall purchase

WhatsApp:

86-13632444010

Download
Inquire

weight

Quantity
-
+

inventory

Add to cart
Buy now

Hidden domain element occupying

Data download

  • Technical parameter

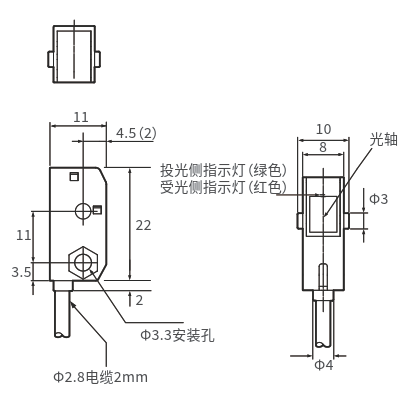

  • Dimensional structure

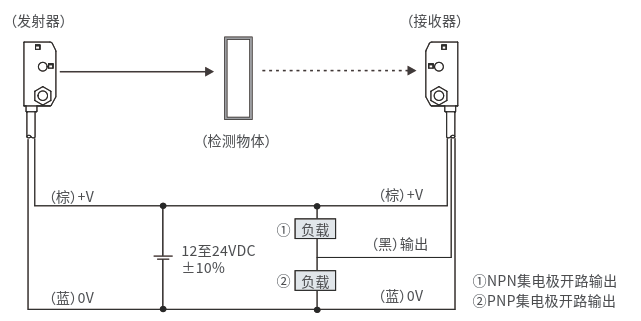

  • Circuit diagram
  • attachment
  • Apply
  • Model :NPNUL-T21N
    typeRelative form
    Detection distance1.5m
    illuminant940nm infrared LED
    Control outputNPN open collector 24V; Maximum output: 50mA Residual current: 15V
    Response timeMax. 3ms
    Protection circuitReverse electrode protection, short circuit protection
    Rated voltage12-24VDC
    NPNNormal: Max. 360mW(24V, Max. 15mA)
    Environmental tolerance: working environment brightnessIncandescent lamp: Max 5000Lux; Daylight: Max. 20000Lux
    Environmental tolerance: working environment temperature-20 to +55%℃(without freezing)
    Environmental tolerance: working environment humidity35 to 85% RH(no condensation)
    Environmental resistance: resistance to vibration10 to 55HZ, composite amplitude 1.5mm,X, Y, Z axis direction 2 hours each
    Shell materialpolycarbonate
    dimension11mm(H)x8mm (w)x22mm(D)
