编号 :
UL-D21
Square photoelectric sensor UL-D21
Retail price
Market price
UL-D21
Product series:
Photoelectric sensor
Photoelectric Sensors
Key words:
weight
Quantity
-
+
inventory
Hidden domain element occupying
Data download
- Technical parameter
- Dimensional structure

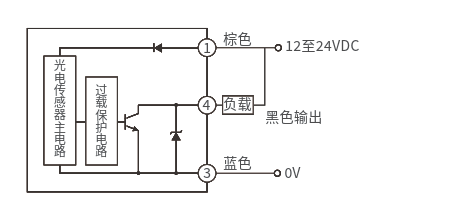

- Circuit diagram
- attachment
- Apply
-
Model :NPN UL-D12N type Reflection type Detection distance 10cm illuminant Infrared light-emitting diode Control output NPN open collector 24V; Maximum output: 50mA Residual current: 1.5V Response time Max. 1ms Protection circuit Reverse electrode protection (power supply), overcurrent protection (output) Rated voltage 24VDC±10%, ripple voltage (P-P) : maximum 10% NPN Normal: Max. 360mW(24V, Max. 15mA) Environmental tolerance: working environment brightness Fluorescent lamp: Max. 20000Lux; Sunlight: Maximum 5000Lux Environmental tolerance: working environment temperature 20 to +55%℃(without freezing) Environmental tolerance: working environment humidity 35 to 85% RH(no condensation) Environmental resistance: resistance to vibration 10 to 55HZ, composite amplitude 1.5mm,X, Y, Z axis direction 2 hours each Shell material polycarbonate dimension 12mm(H)x8mm (w)x32.50mm(D) weight About 21.5g -
-
