Amplifier built-in catheter-mounted level sensor UE-S13
Retail price
Market price
UE-S13
Product series:
Photoelectric Sensors
Photoelectric sensor
Key words:
weight
Quantity
-
+
inventory
Hidden domain element occupying
Data download
- Technical parameter

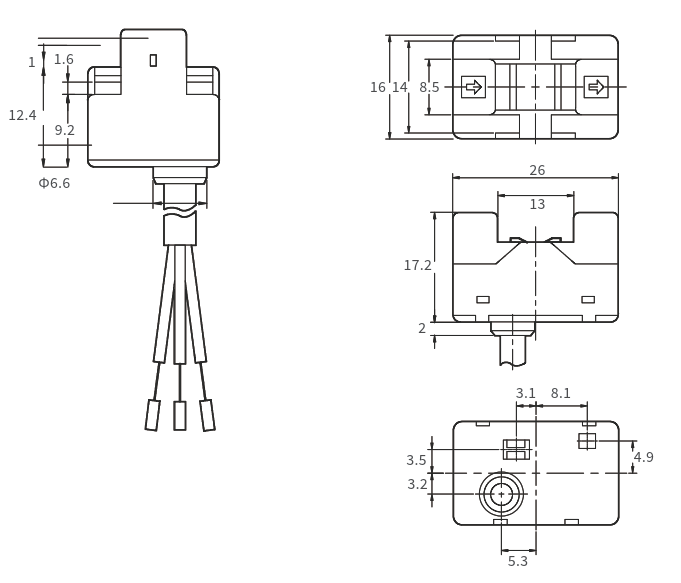

- Dimensional structure
- Circuit diagram
- attachment
- Apply
-
Model number US-S13/US-S13P applicability Transparent catheter (FEP (fluorine resin) or object of equal transparency) with diameter Φ6~13mm (thickness 1mm) Standard test object Liquid in the catheter (high viscosity or cloudy liquid may not be detected in some cases) Light source (maximum luminous wavelength) GaAs Infrared Light Emitting Diode (940nm) Motion display light Light on when entering (red) Reaction time ＜3ms Supply voltage DC12~24V±10% pulsation (P-P) less than 5% Current consumption The average value is below 30mA, and the previous value is below 80mA Control output Load current voltage DC5~24V, load current below 100mA Residual voltage below 0.8V (load current 100mA) Residual voltage below 0.4V (load current 40mA) NPN collector open output type Use ambient illumination Incandescent light: each 3000lx below Ambient temperature Working time: -10~+55°C Storage time: -25~+65°C (no freezing, no condensation) Ambient humidity Working time: 5~85%RH Storage time: 5~95%RH (no condensation) Vibration (durability) 10~500Hz amplitude 1.0mm X, Y, Z direction 3 times (11min/ time) Class of protection IEC specification IP50 Connection mode Wire extraction type (standard wire length 1m) material PC -
-
