编号 :
FM-E25M
High performance digital fiber optic sensor FM-E25M
weight
Quantity
-
+
inventory
Hidden domain element occupying
Data download
- Technical parameter

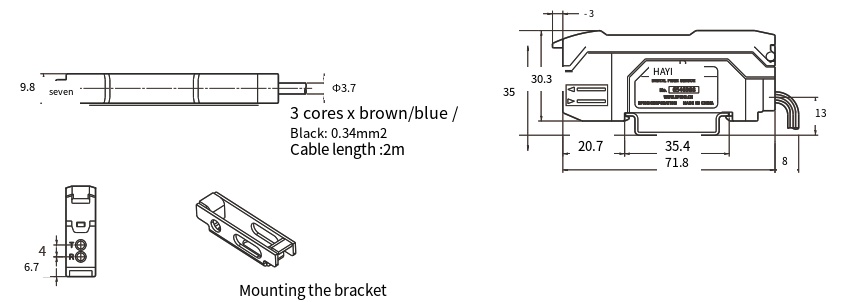

- Dimensional structure
- Circuit diagram
- attachment
- Apply
-
Types Double switch signal output Model: NPN output /PNP output FM-E25/FM-E25P illuminant Red LED LED tube body Reaction time Anti oFF:100μS (HIGH SPEED)/250μs(FINE)/1ms(SUPER) /8ms(MEGA)Antion:300μs(HIGH SPEED) /500μs(FINE)/2ms(SUPER) /16ms (MEGA) Anti stAG:(S1,S2,S3,S4)1ms Output selection LIGHT-ON/DARK-ON(switch selection) Delay function Open delay timer/Open Delay timer/Single timer/Open Delay timer Duration can be selected :0.1ms to 9999ms, accuracy range is set value ±10% Control output Open collector :24V, maximum output :100mA, residual voltage: maximum 1V Power source Between 12 and 24VDC 10%, fluctuation ratio (P-P): maximum 10% Current consumption: NPN Normal: Maximum 750mW (24V, maximum 20mA; 12V: Max. 40mA) Power saving mode: Max. 800mW(Max. 18mA at 24V; 12V: Max. 36mA) Current consumption: PNP Normal: Maximum 950mW(24V, maximum 20mA; 12V: Maximum 40 Power saving mode: maximum 850mW(24V, maximum 18mA; 12V: Max. 36mA) Ambient temperature/relative humidity -20 to +55°C, no freezing /35 to 85%RH, no condensation Vibration resistance 10 to 55HZ, compound amplitude 1.5mm, 2 hours in X, Y, Z direction Materials Polycarbonate vinegar dimension 303mm(H)X9.8mm(W)X71.8mm(D) weight About 85g -
-

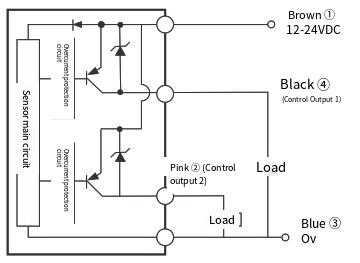

NPN

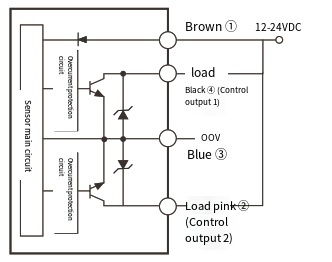

PNP
