编号 :
FM-E31
High speed digital fiber optic sensor FM-E31
Tel:
400-991-9062
weight
Quantity
-
+
inventory
Hidden domain element occupying
Data download
- Technical parameter

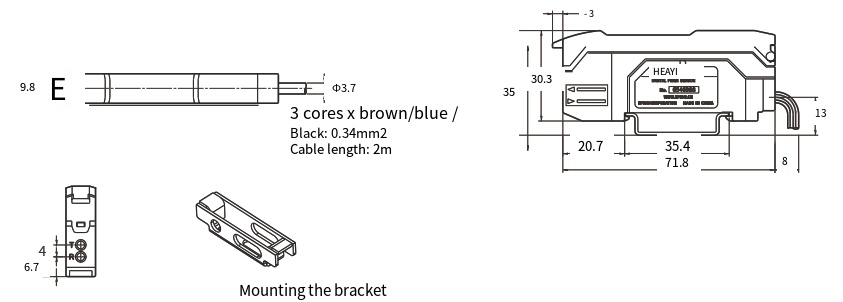

- Dimensional structure
- Circuit diagram
- attachment
- Apply
-
Model: NPN/PNP FM-E31/FM-E31P join cable illuminant 650nm red LED light source Reaction time Anti OFF: 50μs(HIGH SPEED)/250μs(FINE)/1ms(SUPER)/16ms(MEGA) Output selection LIGHT-ON/DARK-ON(switch selection) Delay function Disconnect delay timer/Start Delay timer/single timer Control output :NPN NPN open collector 24V, output maximum :100mA or less, (connect multiple sub-modules); Residual voltage 1V or less Control output :PNP PNP collector open 24V, 1-way output maximum :100mA or less, residual voltage :1V or less Protection circuit Reverse electrode protection (power supply), overcurrent protection (output), overvoltage (output) Supply voltage 12 to 24V DC 10%, ripple voltage (P-P): 10% Max Current consumption :NPN Normal: Maximum 900mW(24V, maximum 36mA; 12V: Max. 48mA Power saving mode: Max. 800mW (Max. 32mA at 24V; 12V: Max. 39mA) Current consumption :PNP Normal: Maximum 950mW(24V, maximum 39mA; 12V: Max 52mA) Power saving mode: Max 850mW(Max 35mA at 24V; 12V: Maximum 44mA) Ambient brightness Incandescent lamp: Max. 20,000lux; Daylight: up to 30,000lux Ambient temperature -20 to +55°C(without freezing) Ambient temperature 35 to 85%RH(no condensation) Vibration resistance 10 to 55HZ, compound amplitude 1.5mm, 2 hours in X, Y, Z direction Materials polycarbonate dimension 30.3mm(H)X9.8mm(W)X71.8mm(D) weight About 66g -
-
NPN
PNP
