编号 :
LS-TM001/002
High precision laser correction sensor LS-TM001/002
weight
Quantity
-
+
inventory
Hidden domain element occupying
Data download
- Technical parameter

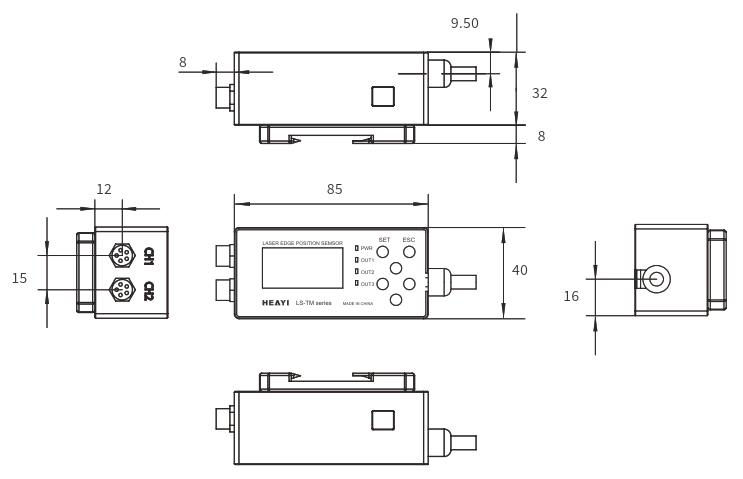

- Dimensional structure
- Circuit diagram
- attachment
- Apply
-
category Master controller/expansion controller Model (Sensor) LS-TM001/LS-TM002 Model (Sensor) Installation mode DIN rail fasteners are installed Number of sensors connected Two sets Supply voltage DC 24V±5% Current consumption 20-50mA Protection circuit Countercurrent protection, overcurrent protection Analog output 4-20mA analog current or 0-10V analog voltage can be switched Output cycle 0.25ms, 0.5ms, 1ms, 2ms I0 Control input I relay input I0 control output 3 x NPN/PNP, switchable, MAX50mA Class of protection IP50 Use ambient temperature/humidity -10 ~+ 50/35 ~85%RH(icing without condensation) Storage environment temperature/humidity -20~+ 60℃/35~85%RH(no condensation freezing) Use ambient light Sunlight: below 10000Lux, incandescent lamp: below 30000Lux Storage environment temperature/humidity 20~+ 60℃/35~85%RH(no condensation freezing) Vibration resistance 10~55Hz double amplitude 1.5mm, X,Y,Z directions for 2 hours impact-resistant About 50G(500m/s2)X,Y,Z 3 times in 3 directions material Aluminium alloy weight 210g -
-

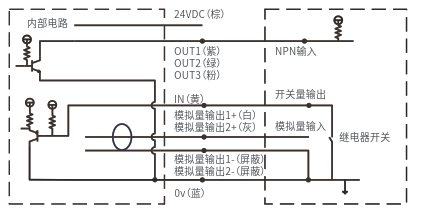

NPN

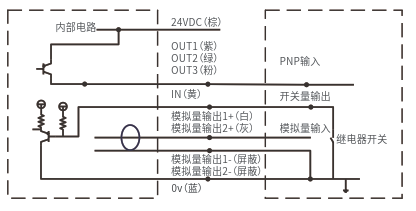

PNP
