编号 :
ZL-R20
Ordinary red light photoelectric sensor ZL-R20 (Polarized light)
Retail price
Market price
ZL-R20
Product series:
Photoelectric Sensors
Photoelectric sensor
Key words:
weight
Quantity
-
+
inventory
Hidden domain element occupying
Data download
- Technical parameter

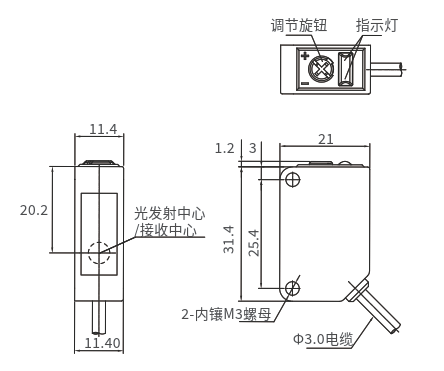

- Dimensional structure
- Circuit diagram
- attachment
- Apply
-
Model :NPN/PNP ZL-T08IN/ZL-T08INP type Relative form Detection distance 1.5m Test object 45 x 45mm transparent material illuminant Infrared light Supply voltage 12-24VDC±10% Connection mode Four-core cable Sensitivity regulation One turn knob adjustable (230°) Control output NPN open collector 24V, Max 50mA; PNP open collector 24V, Max 50mA Working mode NO/NC(optional when wiring) Reaction time Max. 3ms Current consumption Max. 20ms Class of protection IP65 Protection circuit Reverse pole protection, short circuit protection Ambient light intensity Incandescent lamp: Max. 5,000lux, eye: Max. 20,000lux Ambient temperature/ambient humidity -20 ° C to +55 ° C, no freezing, 35% to 85% relative humidity -
-
